LS-2607R Coreless Brush DC Motor

Speed(RPM): 8600 (rated)
Continuous Current(A): 0.15 A
Efficiency: IE 2
Place of Origin: China
Torque: 1.54 mNm (rated)
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Explosion-proof
Feature: long lifetime low noise
Rated Voltage: 5-12V
Size: 26*7mm
Noise: low noise level 40db
Brush Type: metal brush
Shaft diameter: 1.5mm
Availability:
Quantity:
  • LS-2607R

  • Leison Motor

Electrical Specifications

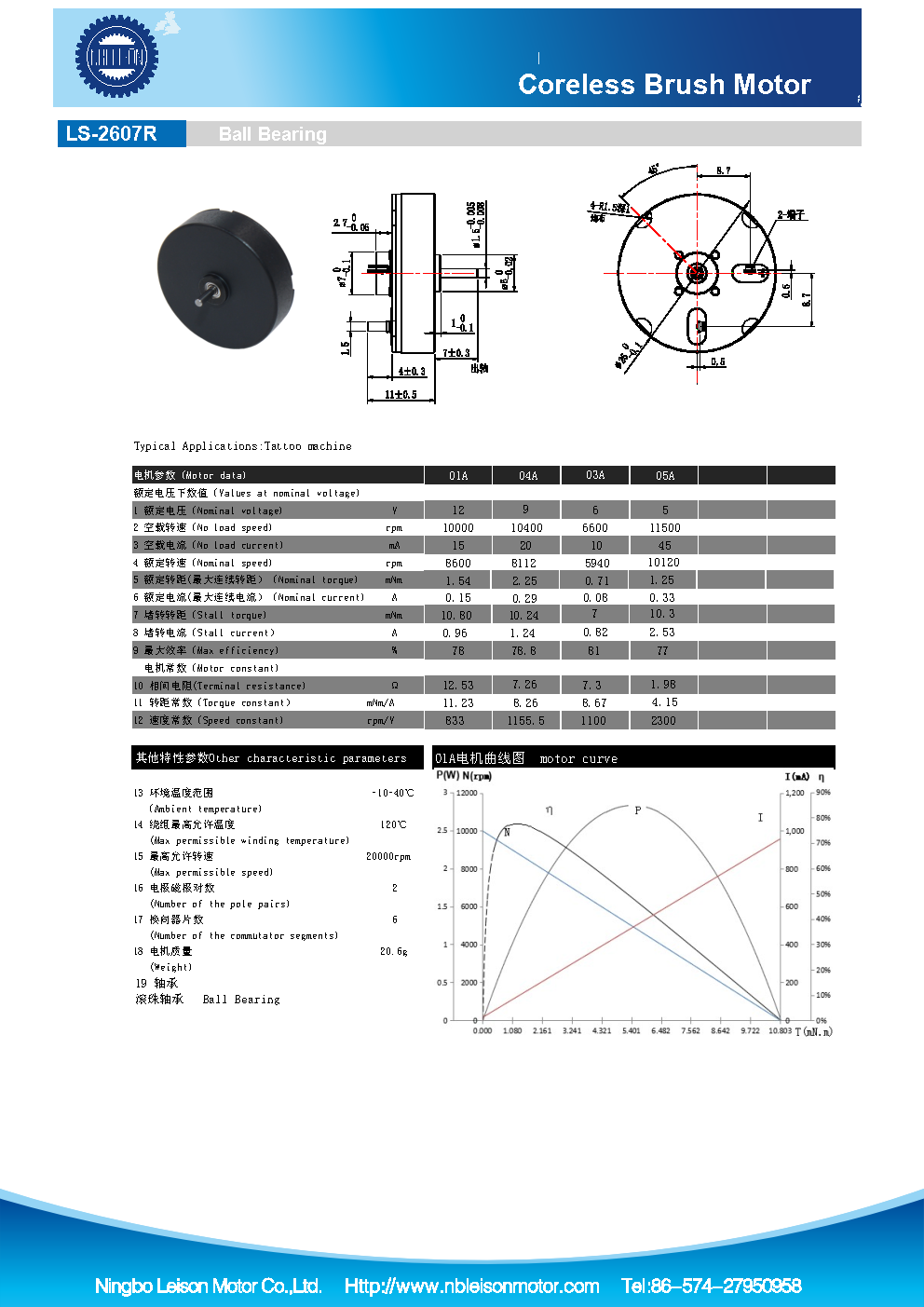

不用缩小的手指LS-2607R Corless Brush DC Motor.pdf


Motor Data


LS-2607R Corless Brush DC Motor

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized
