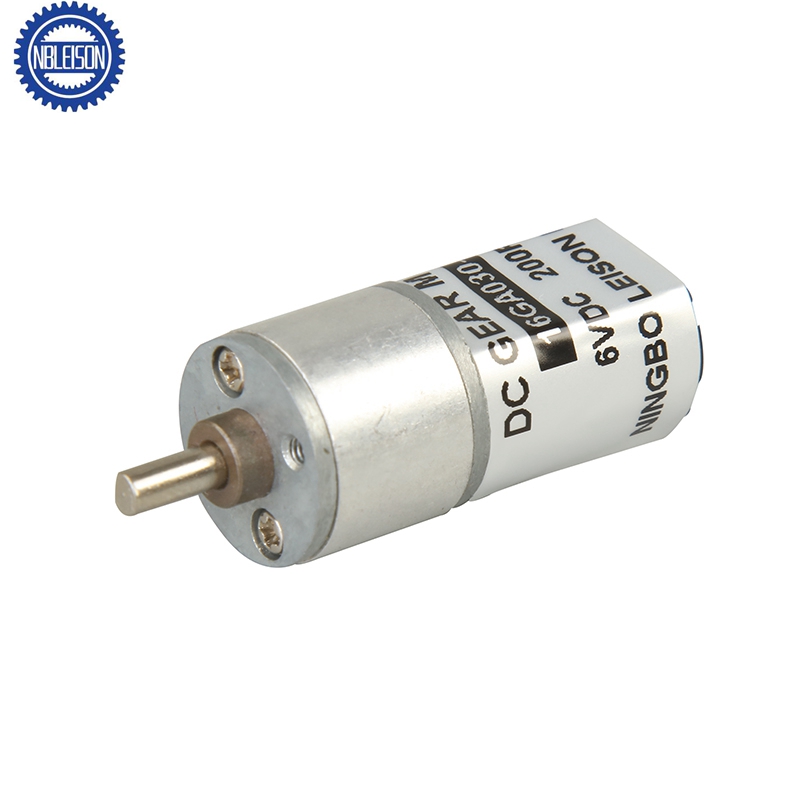

LS-16GA030
Leison Motor
Electrical Specifications
Motor Data
| Model | Voltage | No Load | At Maximum Efficiency | Starting | |||||||
| Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | Current | |||
| r/min | mA | r/min | mA | mN.m | g.cm | W | mN.m | g.cm | mA | ||
| LS-16GA030-100 | 3 | 70 | 60 | 52 | 170 | 29.4 | 300 | 0.16 | 78.4 | 800 | 450 |
| LS-16GA030-50 | 6 | 250 | 80 | 200 | 250 | 11.7 | 120 | 0.25 | 98 | 1000 | 700 |
| LS-16GA030-600 | 5 | 6.5 | 30 | 5 | 40 | 68.6 | 700 | 0.1 | 294 | 3000 | 700 |
| LS-16GA030-24 | 12 | 775 | 100 | 620 | 260 | 68.6 | 120 | 180 | 58.8 | 600 | 500 |
| LS-16GA030-600 | 6 | 10 | 45 | 8 | 130 | 73.5 | 750 | 294 | 3000 | 680 | |
| LS-16GA030-592 | 6 | 9 | 30 | 7.4 | 52 | 58.8 | 600 | 264.6 | 2700 | 150 | |
| LS-16GA030-91 | 6 | 106 | 72 | 83 | 146 | 19.6 | 200 | 72.5 | 740 | 420 | |
| LS-16GA030-148 | 6 | 70 | 82 | 59 | 145 | 29.4 | 300 | 147 | 1500 | 540 | |
| LS-16GA030-150 | 6 | 75 | 80 | 60 | 200 | 49 | 500 | 225.4 | 2300 | 500 | |
| LS-16GA030-81 | 6 | 110 | 50 | 90 | 102 | 29.4 | 300 | 176.4 | 1800 | 500 | |
| * Note: It’s only typical technical data, special requirement can be customized. | |||||||||||
Gearbox Data
| Number Of Stages | 3 | 4 | 5 | 6 | 7 |
| Gear Ratio I | 11.1 | 22.2 | 83.3 | 200 | 600 |
| 16.7 | 33.3 | 100 | 250 | 750 | |
| 50 | 150 | 300 | 900 | ||
| 450 | 1350 | ||||
| Length Of Gearbox L (mm) | 12.8 | 12.8 | 14.2 | 15.6 | 17.9 |
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
