BL3650
Leison Motor
Electrical Specifications

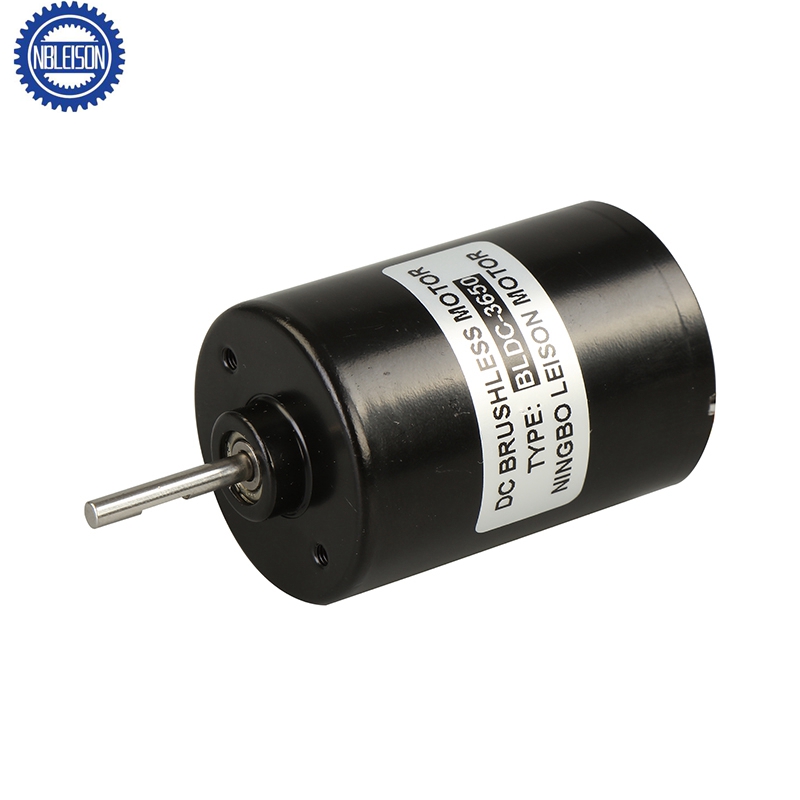

DC Brushless Motor BL3650
General Specifications
| Connection Mode B & C | |
| Clockwise Rotation/ Counter Clockwise Rotation | |
| FG Signal | |
| PWM Control | |
| Locked Rotor Protection | |
| Power | 30W (lnternal Drive) |
| 50W (External Drive) | |
| Life Expectancy | ~3000H (Oil Bearing) |
| ~5000H (Ball Bearing) | |
Motor Data
| Motor model | Rated voltage | No-load | Rated | Stall | |||||
| Speed | Current | Speed | Torque | Current | Power | Torque | Current | ||
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A | |
| BL3650-1261 | 12.0 | 6100 | 530 | 4819 | 296.5 | 192 | 15 | 1412.0 | 7.16 |
| BL3650-1265 | 12.0 | 6500 | 250 | 5300 | 200 | 1400 | 11 | 1050 | 4.0 |
| BL3650-2440 | 24.0 | 4000 | 80 | 3400 | 200 | 420 | 7 | 1300 | 2.4 |
| BL3650-24194 | 24.0 | 19400 | 440 | 15326 | 162.5 | 161 | 26 | 774.0 | 6.00 |
| * Note: It’s only typical technical data, special requirement can be customized. | |||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
Electrical Specifications
DC Brushless Motor BL3650
General Specifications
| Connection Mode B & C | |
| Clockwise Rotation/ Counter Clockwise Rotation | |
| FG Signal | |
| PWM Control | |
| Locked Rotor Protection | |
| Power | 30W (lnternal Drive) |
| 50W (External Drive) | |
| Life Expectancy | ~3000H (Oil Bearing) |
| ~5000H (Ball Bearing) | |
Motor Data
| Motor model | Rated voltage | No-load | Rated | Stall | |||||
| Speed | Current | Speed | Torque | Current | Power | Torque | Current | ||
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A | |
| BL3650-1261 | 12.0 | 6100 | 530 | 4819 | 296.5 | 192 | 15 | 1412.0 | 7.16 |
| BL3650-1265 | 12.0 | 6500 | 250 | 5300 | 200 | 1400 | 11 | 1050 | 4.0 |
| BL3650-2440 | 24.0 | 4000 | 80 | 3400 | 200 | 420 | 7 | 1300 | 2.4 |
| BL3650-24194 | 24.0 | 19400 | 440 | 15326 | 162.5 | 161 | 26 | 774.0 | 6.00 |
| * Note: It’s only typical technical data, special requirement can be customized. | |||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
