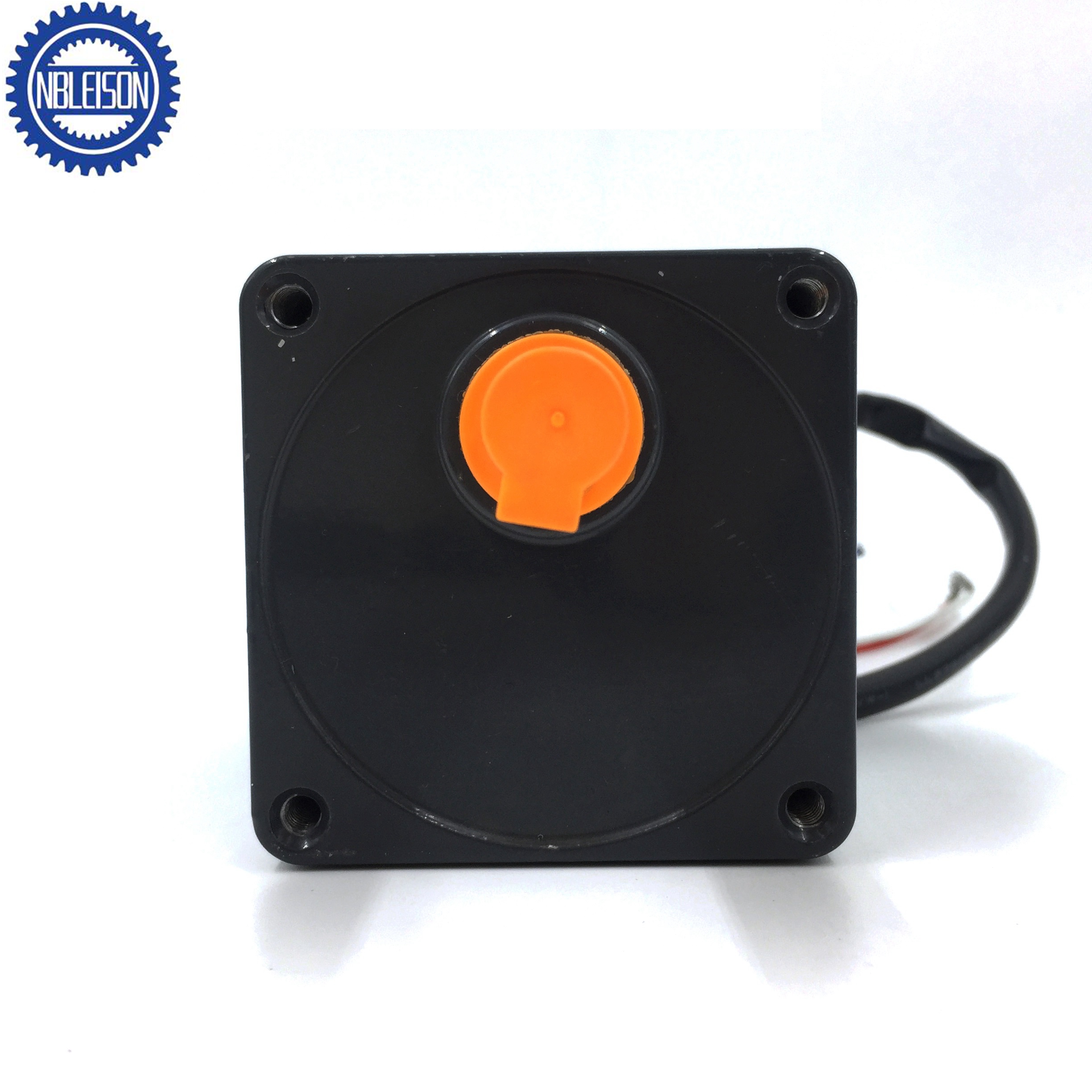

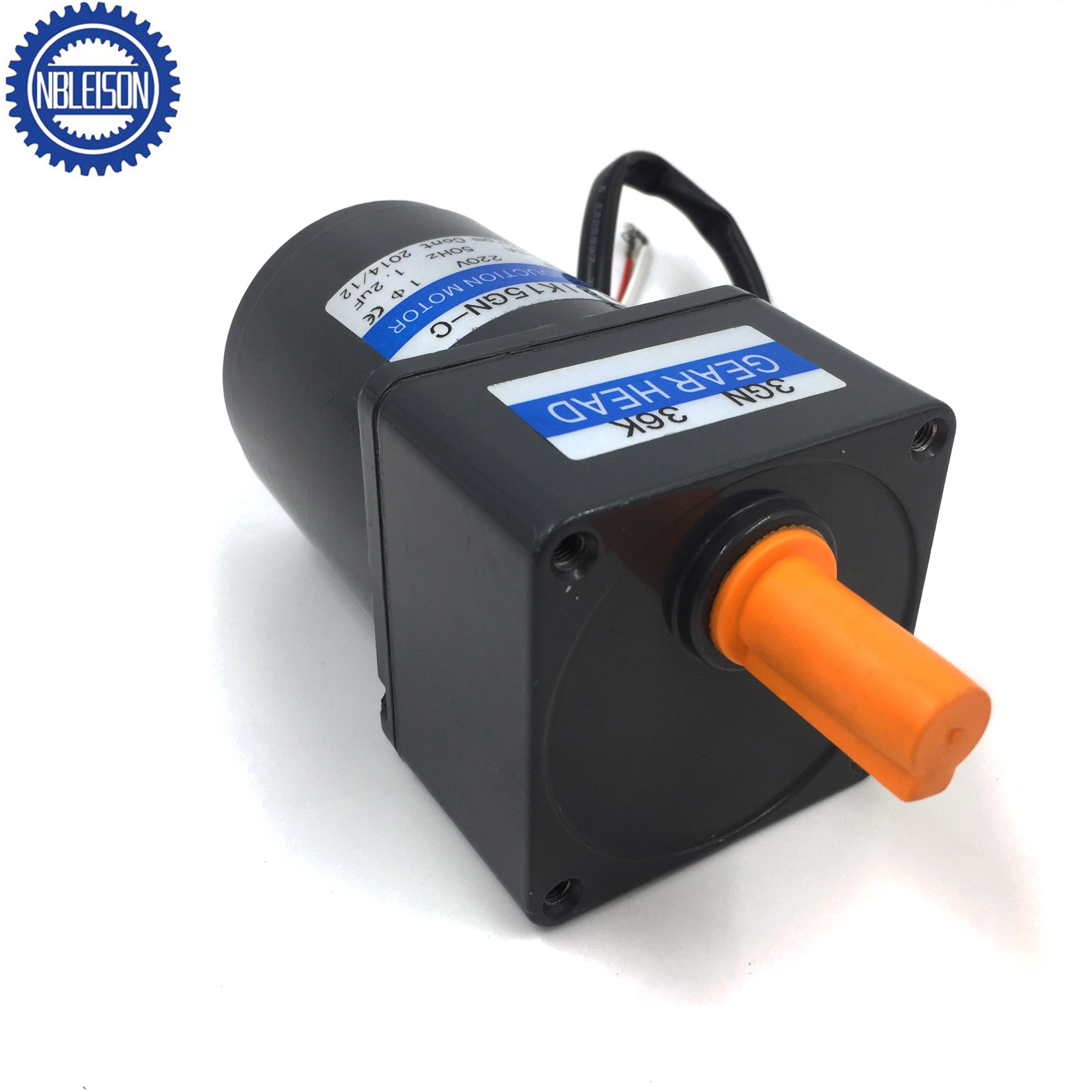

3IK15
Leison Motor
Electrical Specifications
Motor Data
| Model of Motor | Output | Voltage | Frequency | Poles | Duty | Rated | Stall Torque | Capacitor/Ve | |||||
| Speed | Current | Torque | |||||||||||
| Motor | Motor with gear shaft | W | V | Hz | P | ||||||||
| r/min | A | N.m | kgf.cm | N.m | kgf.cm | μF/VAC | |||||||
| 3IK15A-A | 3IK15GN-A | 15 | 1ph110 | 50 | 4 | CONT | 1300 | 0.30 | 0.11 | 1.10 | 0.09 | 0.09 | 5.0/250 |
| 3IK15A-C | 3IK15GN-C | 15 | 1ph220 | 50 | 4 | CONT | 1300 | 0.14 | 0.11 | 1.10 | 0.10 | 0.95 | 1.2/450 |
| 3IK15A-D | 15 | 1ph220 | 50 | 2 | CONT | 2750 | 0.17 | 0.06 | 0.55 | 0.08 | 0.75 | 1.5/450 | |
| * Note: It’s only typical technical data, special requirement can be customized. | |||||||||||||
Gearbox Data
| Frequency | Reduction Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| 50Hz | Output Shaft Speed | r/min | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | 7.5 |
| Allowable Torque | N.m | 0.31 | 0.38 | 0.53 | 0.64 | 0.79 | 0.95 | 1.06 | 1.32 | 1.59 | 1.90 | 1.90 | 2.37 | 2.85 | 3.42 | 3.81 | 4.28 | 4.90 | 4.90 | 4.90 | 4.90 | 4.90 | 4.90 | 4.90 | 4.90 | |
| kgf.cm | 3.2 | 3.9 | 5.4 | 6.5 | 8.1 | 9.7 | 10.8 | 13.5 | 16.2 | 19.4 | 19.4 | 24.2 | 29.1 | 31.9 | 38.8 | 43.6 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | ||
| 60Hz | Output Shaft Speed | r/min | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 |
| Allowable Torque | N.m | 0.29 | 0.35 | 0.50 | 0.60 | 0.75 | 0.89 | 0.99 | 1.25 | 1.49 | 1.79 | 1.79 | 2.24 | 2.68 | 3.22 | 3.58 | 4.02 | 4.83 | 4.90 | 4.90 | 4.90 | 4.90 | 4.90 | 4.90 | 4.90 | |
| kgf.cm | 3.0 | 3.6 | 5.1 | 6.1 | 7.6 | 9.1 | 10.1 | 12.7 | 15.2 | 18.2 | 18.2 | 22.8 | 27.3 | 32.8 | 36.5 | 41.0 | 49.2 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |
| Reduction Ratio | L(mm) | W(kg) | |
| Gearbox | 3GN3K-GN18K | 32 | 0.38 |
| 3GN20K-GN50K | 42 | 0.47 | |
| 3GN60K-GN200K | 0.52 | ||
| Motor | 1.04 |
Capacitor Data
| Capacity μF Allowable Deviatio 5% | Voltage | L±1 | W±1 | H±1 | Type |
| V | mm | mm | mm | ||
| 1.2 | 450 | 37 | 14 | 28 | Down-lead |
| 1.5 | 450 | 37 | 14 | 28 | |
| 5.0 | 250 | 47 | 22 | 34 |
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
